產品特點:
行業應用:
1.AOI、SPI
2.半導體
3.緊固件檢測
4.SMT
5.3C
6.食品藥品

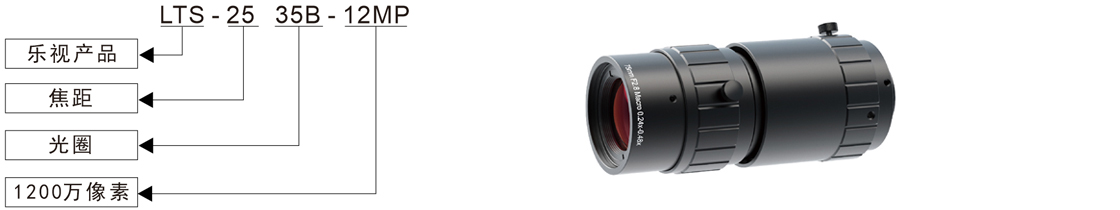

型號 | 焦距 | 主要參數 | 光圈范圍 | 濾鏡螺紋 | 支持靶面(英寸) | 產品尺寸 | 后焦距 | |||
LTS-2535B-12MP | 25 | 倍率 | 0.1X | 0.2X | 0.4X | 3.5-16 | M37x0.5 | 1/1.8 | ?40*43.3 | 17.526 |
FOV | 188.5 | 95.1 | 48 | 2/3 | ||||||
WD | 251 | 183 | 62 | 1 | ||||||
畸變 | 0.81% | 0.05% | 0.74% | 1.1 | ||||||
LTS-3530B-12MP | 35 | 倍率 | 0.25X | 0.4X | 0.7X | 3-16 | M34x0.5 | 1/1.8 | ?38*59.3 | 17.526 |
FOV | 75.7 | 47.6 | 27.3 | 2/3 | ||||||
WD | 129.8 | 82.9 | 56.2 | 1 | ||||||
畸變 | 0.4% | 0.03% | 0.34% | 1.1 | ||||||
LTS-5028B-12MP | 50 | 倍率 | 0.46X | 0.59X | 0.82X | 2.8-16 | M34x0.5 | 1/1.8 | ?40*78.5 | 17.526 |
FOV | 41.33 | 32.38 | 23.21 | 2/3 | ||||||
WD | 127.17 | 109.75 | 97.14 | 1 | ||||||
畸變 | 0.17% | 0.04% | 0.08% | 1.1 | ||||||
LTS-7528B-12MP | 75 | 倍率 | 0.24X | 0.37X | 0.48X | 2.8-16 | M43x0.75 | 1/1.8 | ?48*112 | 17.526 |
FOV | 79.1 | 51.5 | 39.6 | 2/3 | ||||||
WD | 344.28 | 242.22 | 202.88 | 1 | ||||||
畸變 | 0.04% | 0.03% | 0.06% | 1.1 |
型號 | 焦距 | 光圈范圍 | 像面尺寸 | 工作距離 | 螺紋接口 |
LTS-1240A-20MP | 12mm | F4.0~F11 | ?16mm 1" | 150mm~無窮遠 | 51.10 V口 |
LTS-1620M-20MP | 16mm | F=1:2.4-16 | 17.526MM IN AIR | 0.1M | M40.5*P0.5 |
LTS-2520M-20MP | 25mm | F=1:2.4-16 | 17.526MM IN AIR | 0.1M~無窮遠 | M35.5*P0.5 |
LTS-3520M-20MP | 35mm | F=1:2.4-16 | 17.526MM IN AIR | 0.2M~無窮遠 | M35.5*P0.5 |
LTS-5020M-20MP | 50mm | F=1:2.4-16 | 17.526MM IN AIR | 0.3M~無窮遠 | M40.5*P0.5 |
